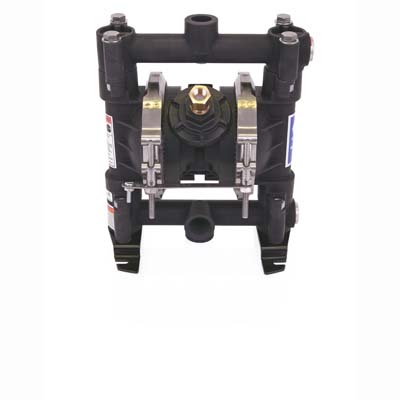

Description Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid Part Number: 241906 The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of fluid and features center and end porting options. Ideal for bulk antifreeze and windshield solvent transfer. Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Technical Specifications CONVERT TO METRIC Air Exhaust Port Size (in) 3/8 Air Exhaust Port Thread Gender Female Air Exhaust Port Thread Type NPT Air Inlet Size (in) 1/4 Air Inlet Thread Gender Female Air Inlet Thread Type NPT Application Industrial Ball Material Buna-N Compatible Material Oil, Water, Antifreeze, Windshield Washer Fluid Connection Type Threaded Construction Aluminum, Buna-N, PTFE Diaphragm Material Buna-N Fluid Inlet Size (in) 3/4 Fluid Inlet Thread Gender Female Fluid Inlet Thread Type NPT Fluid Outlet Size (in) 3/4 Fluid Outlet Thread Gender Female Fluid Outlet Thread Type NPT Fluid Section Material Aluminum For Use With Oil, Water, Anti-freeze, Washer Fluid, Used Oil Manifold O-Ring Material PTFE Material Aluminum Maximum Air Consumption (SCFM) 28 Maximum Air Pressure (MPa) 0.7 Maximum Air Pressure (psi) 100 Maximum Cycle Rate (CPM) 400 Maximum Flow Rate (GPM) 16 Maximum Fluid Pressure (MPa) 0.7 Maximum Fluid Pressure (psi) 100 Maximum Operating Temperature (°F) 180 Maximum Solid Size (in) 0.09375 Model Husky Overall Height (in) 10.43 Power Source Air Series 716 Standards Met CE Type Pneumatic Diaphragm Pump Weight (lb) 8.5
