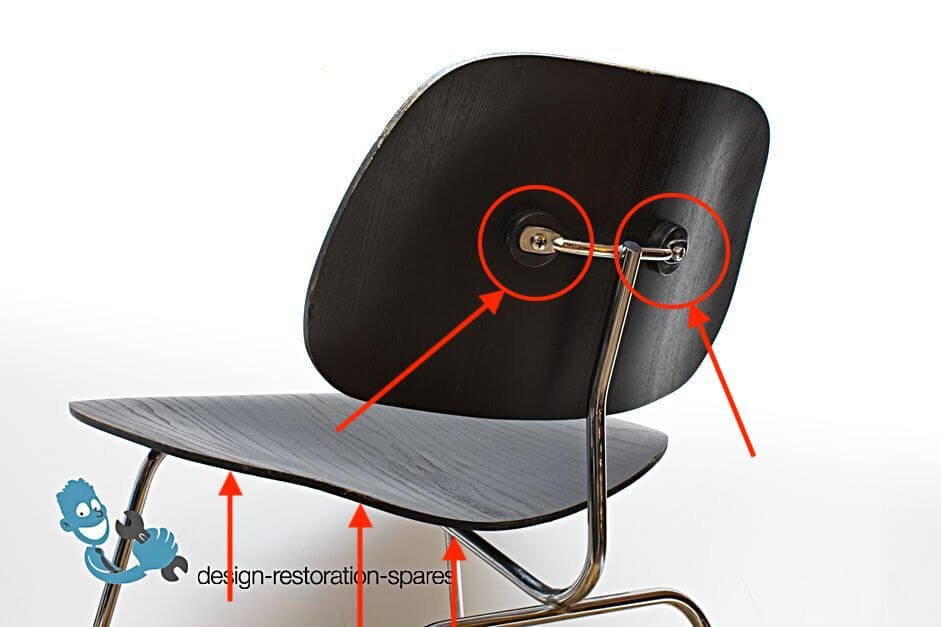

Description Replacement Neoprene Shock Mounts for Eames Herman Miller LCM DCM Chairs Original replacement shock mounts for Eames DCM LCM chairs – 100% like original – correct full elastic neoprene rubber material (NOT polyurethane!) – vulcanized, hence proper metal-rubber connection – full elasticity takes off tension from plywood – correct size and correct radius Please select backrest (short screw metric) underneath seat (long screw metric) underneath seat (long screw metric small thread) Buy matching adhesive click and select Rubber | Plywood 1 unit is 1 shock mount 1 screw backrest > 2 shock mounts required underneath seat > 3 shock mounts required Some chairs had one shock mount with smaller thread underneath in the middle. In this case add 2 shock mounts underneath seat and 1 shock mount underneath seat small thread Complete chair has 2 shock mounts with short screws for backrest and 3 shock mounts underneath seat with long screws. INSTRUCTION – Cut old shock mount above the wood with a saw under metal inlay (metal usual is at outer thirds). You can use an oscillating multi-tool (also called vibration saw) to cut them roughly off, but also a hand saw. – Then use a sharp wood chisel to remove the rest. – Remove all rubber and old glue down to bare wood. – Use rough sand paper to give the area a good grip for the glue. – Don’t forget to degrease with Acetone (nothing else than Acetone!!) before gluing. Disclaimer: Theoretical guidance, we do not take any responsibility for your execution! All you do is at your own responsibility! Also watch the video below!
